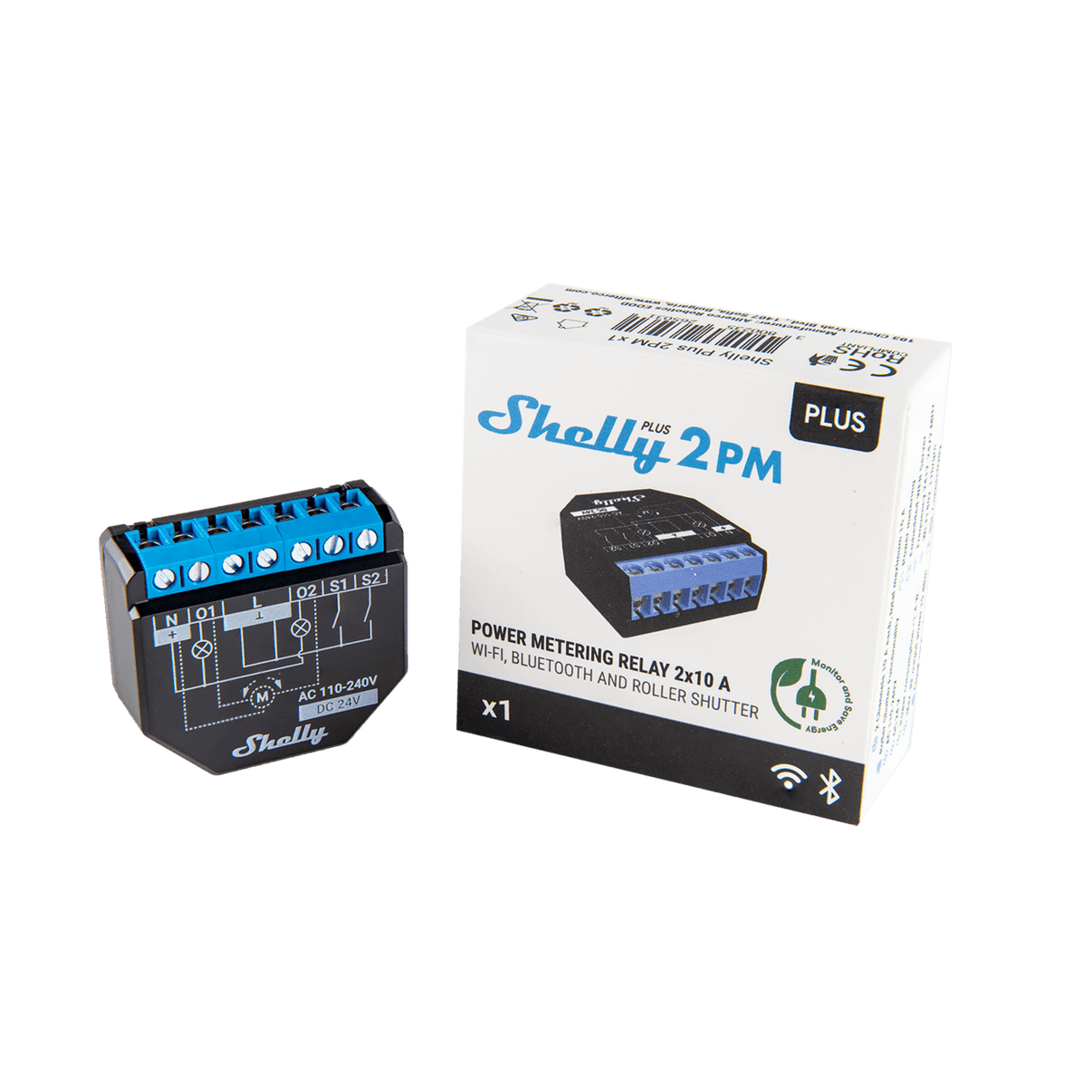

Shelly Plus 2PM

• 2 channels on the same phase
• Power metering on each channel
• Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
• Scripting, schedules, and webhooks
• Designed to fit in most standard electrical boxes and switches
• Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
• No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.

Power Supply:

• 110–240 V AC / 24 V DC ±10%

Device Power Consumption:

< 1.4 W

Max Switching Voltage:

• AC: 240 V

• DC: 30 V

Max Switching Current:

• 10 A per channel

• 16 A total

• 18 A total peak

Meters:

• Voltmeter (AC): Yes

• Ammeter (AC): Yes

Wireless Protocols:

• Wi-Fi: 802.11 b/g/n

• Bluetooth: 4.2

Wireless Range:

• Wi-Fi: Up to 30 m (100 ft) indoors, 50 m (160 ft) outdoors

• Bluetooth: Up to 10 m (33 ft) indoors, 30 m (100 ft) outdoors

Dimensions (H × W × D):

37 × 42 × 16 ±0.5 mm / 1.46 × 1.65 × 0.63 ±0.02 in
